The Foundation of Performance Lighting | Explore CSL Forme Downlights & CSL Forme Cylinders

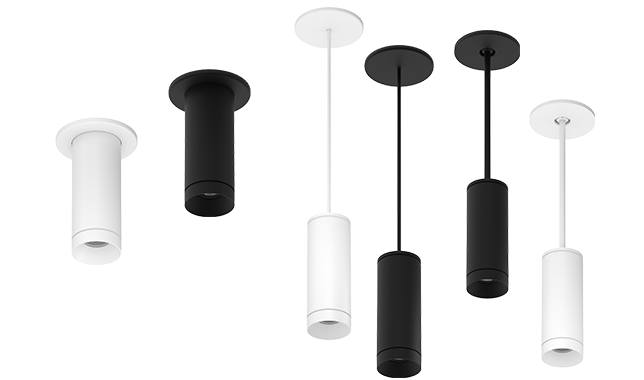

CSL Forme

Cylinders

Where performance begins - built with the same optics and LED technology that define CSL's premium lines, CSL Forme delivers exceptional glare-free light quality in a simplified, accessible form.
Pendant FlushMount
CSL Forme LIGHTING
UL
Dimmable
Damp Location
JA-8
5 years
40°
CSL Forme represents where performance begins — a lighting collection designed to bring CSL’s trusted quality, precision engineering, and architectural refinement to every project. Built with the same optics and LED technology that define CSL’s premium lines, CSL Forme delivers exceptional glare-free light quality in a simplified, accessible form.

Clean lines, minimal silhouettes, and reliable quick-ship availability make CSL Forme the go-to choice for spaces that demand efficiency without compromise. Whether illuminating commercial, hospitality, or residential spaces, CSL Forme keeps projects on track, on time, and aligned with budget goals — all while maintaining the performance and design integrity CSL is known for.

From concept to completion, CSL Forme is the starting point of great design — grounded, reliable, and brilliantly executed.
LED Light Engine 55K hours
LED Light Engine
High quality LEDs chosen with 2 SDCM binning. LED lifetime 55,000 hours.
SilentVU<sup>™</sup> Optic Technology
SilentVU Optic Technology
Removes harsh glare and provides perfectly soft, even light.

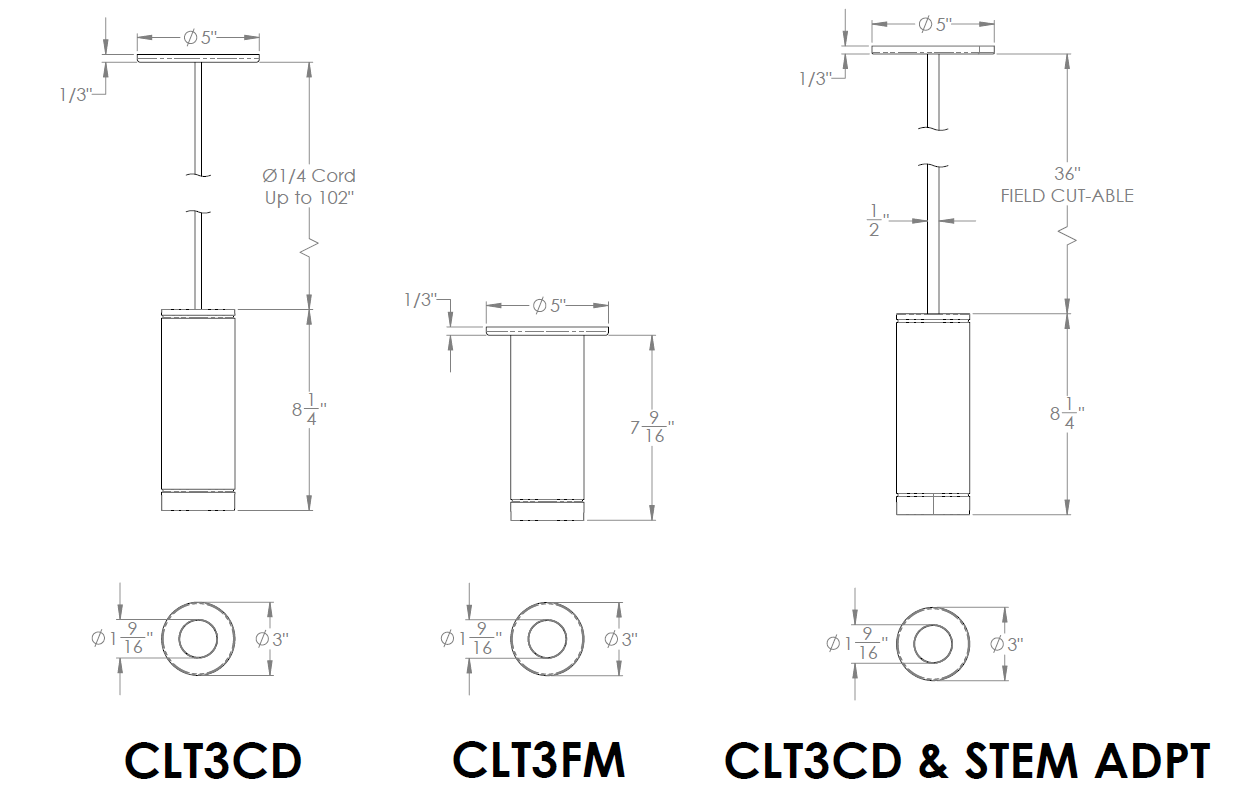

Mounting Options
Mounting Options
Multiple mounting options are available.

Options

LED light engine performance
3"
RATED WATTAGES 14W
DELIVERED LUMENS Up to 1396 lm
EFFICACY Up to 101 LPW
SILENT VU OPTICS Minimal Glare
CCT @ 90 CRI 2700K, 3000K, 3500K
LED LIFETIME
>55,000 hours @ L80
INPUT VOLTAGE
120/277V 50/60Hz
DIMMING
TRIAC, ELV and 0-10V, dims to 1%

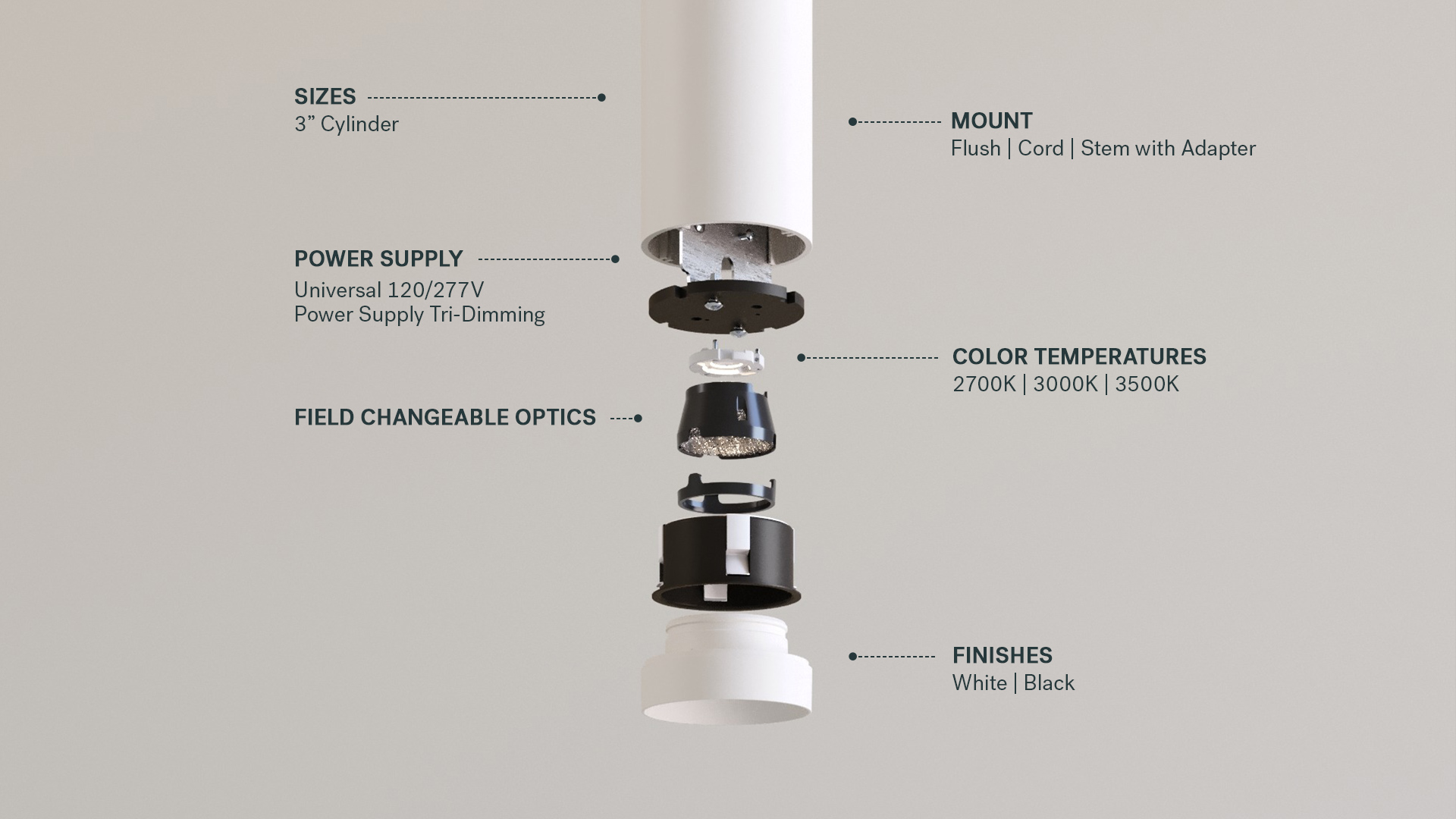

SERVICABILITY
Light Module and Driver Field Serviceable
Driver is inside the Cylinder body, not in the Canopy.
