ECO^™

Recessed Downlights

Easy adjustability before installation.
Sophisticated Architectural Finish

Options
Housing
Trim

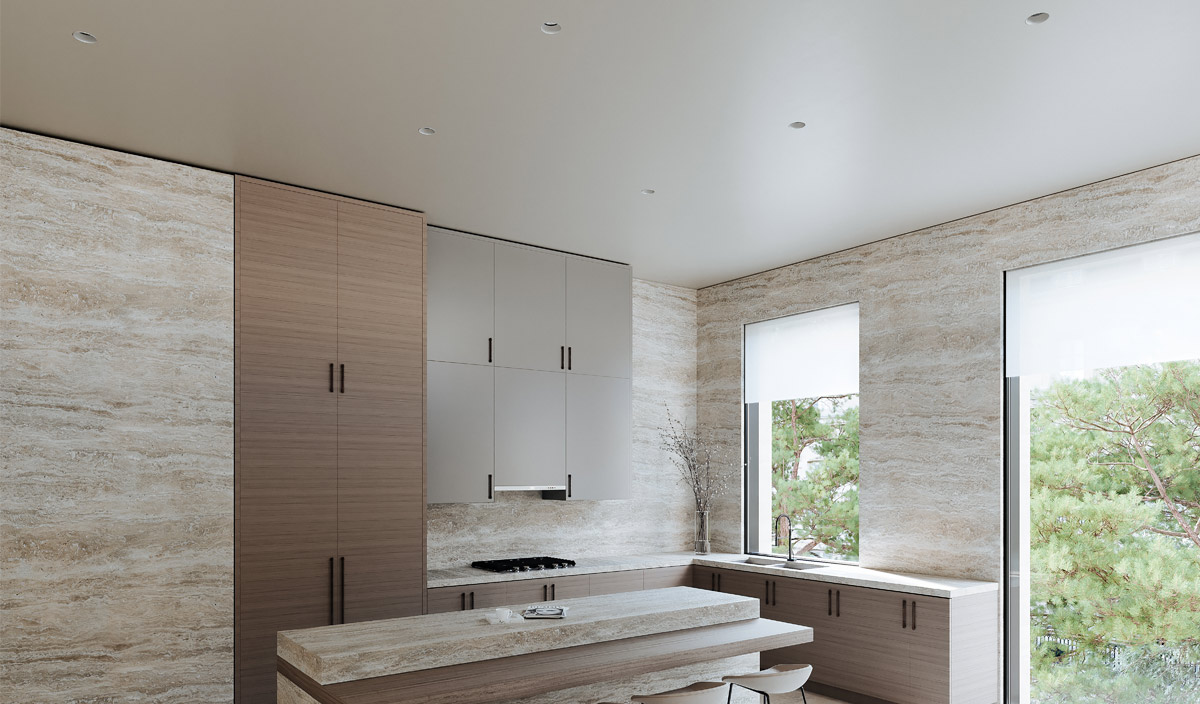

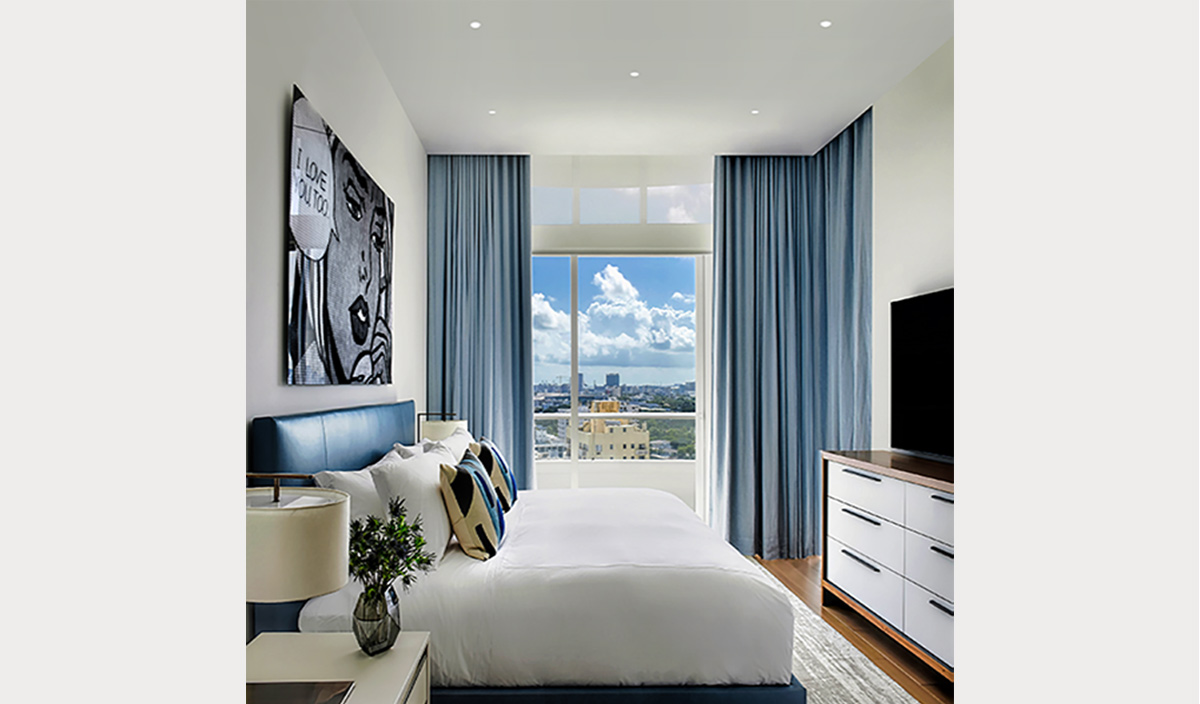

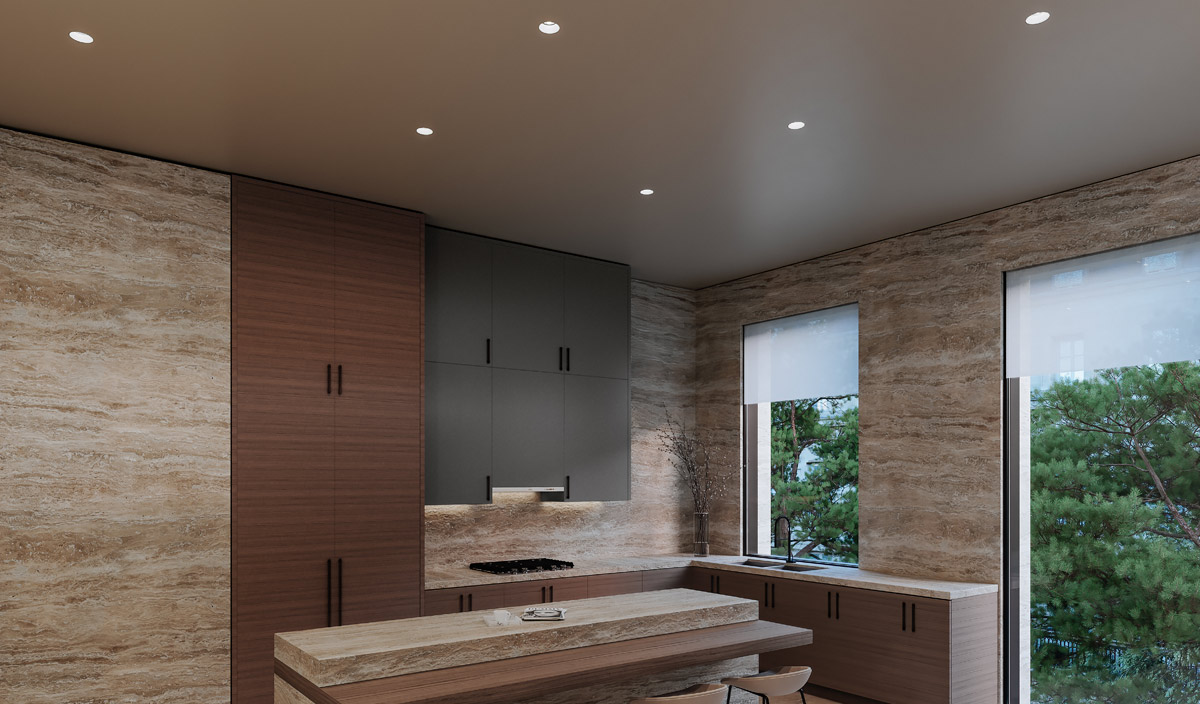

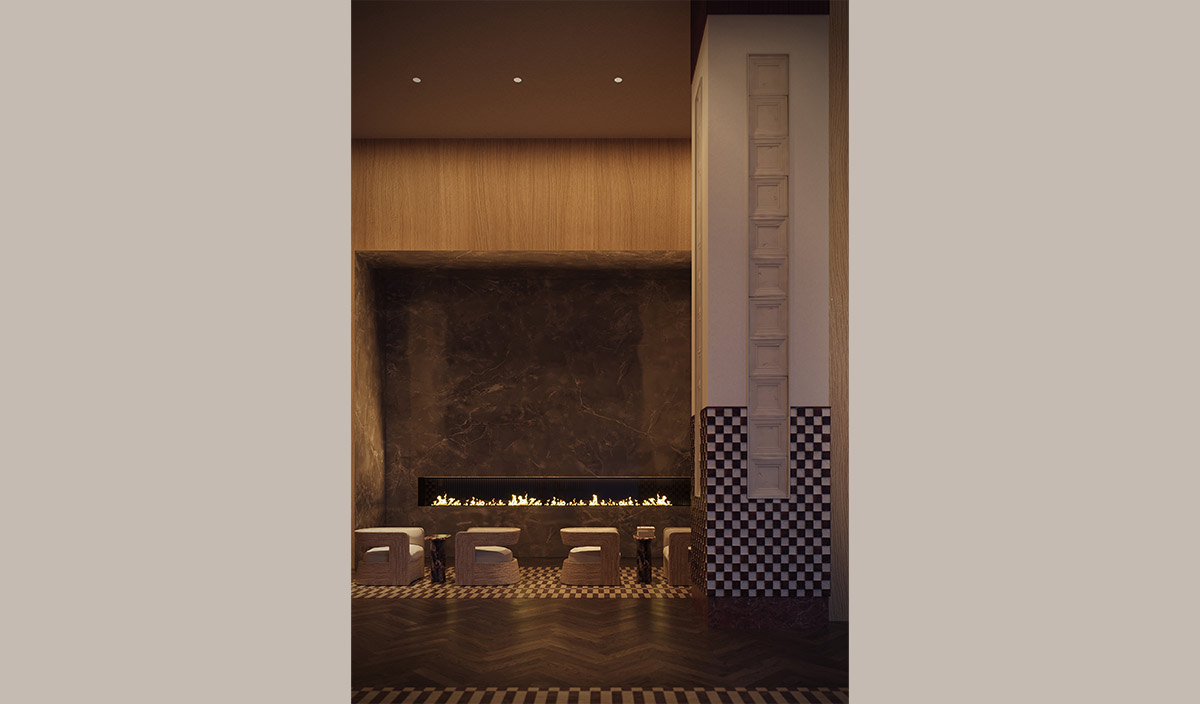

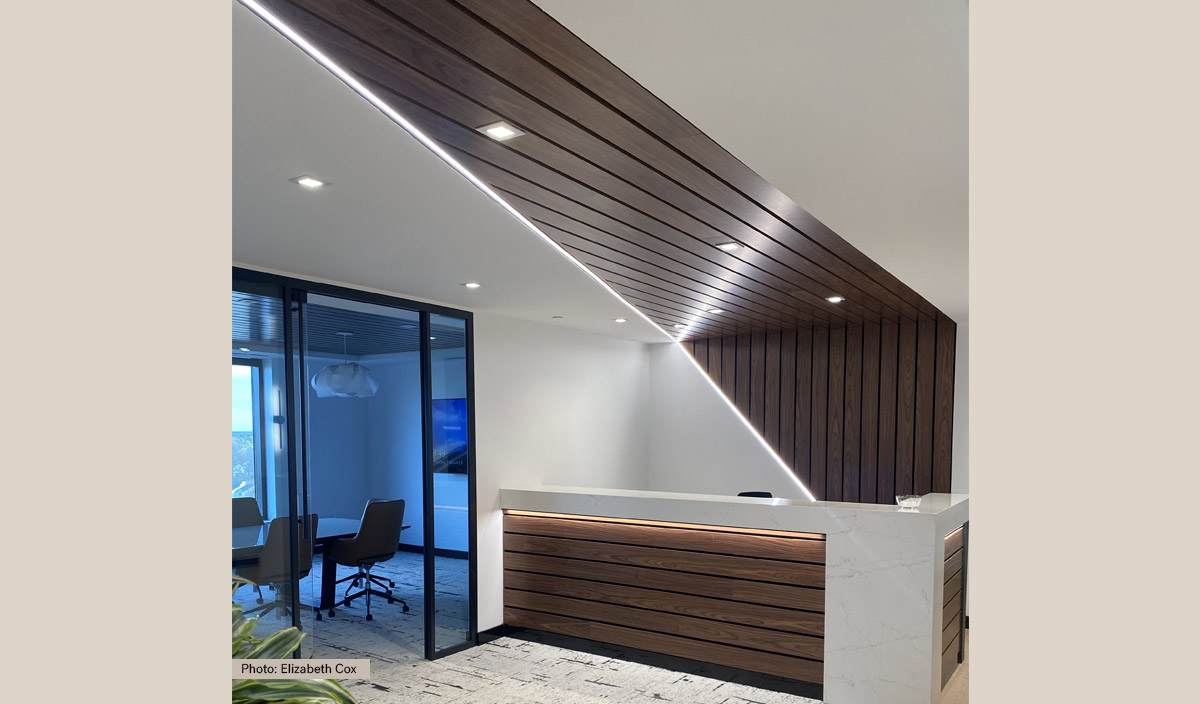

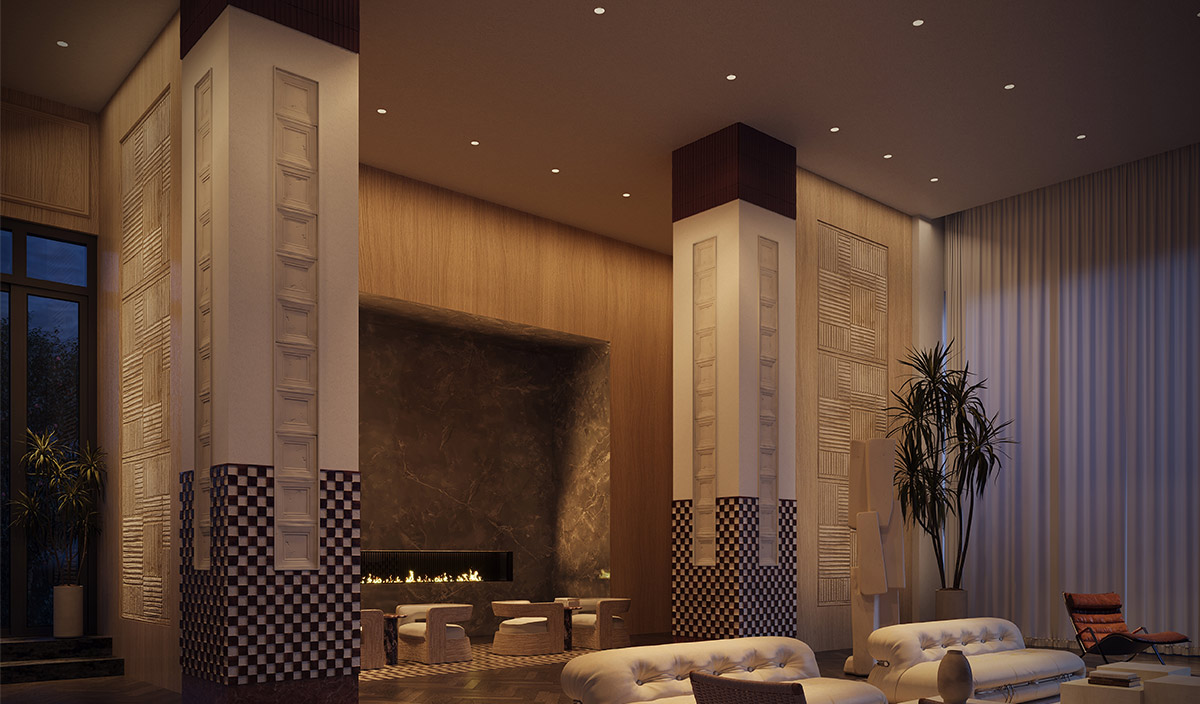

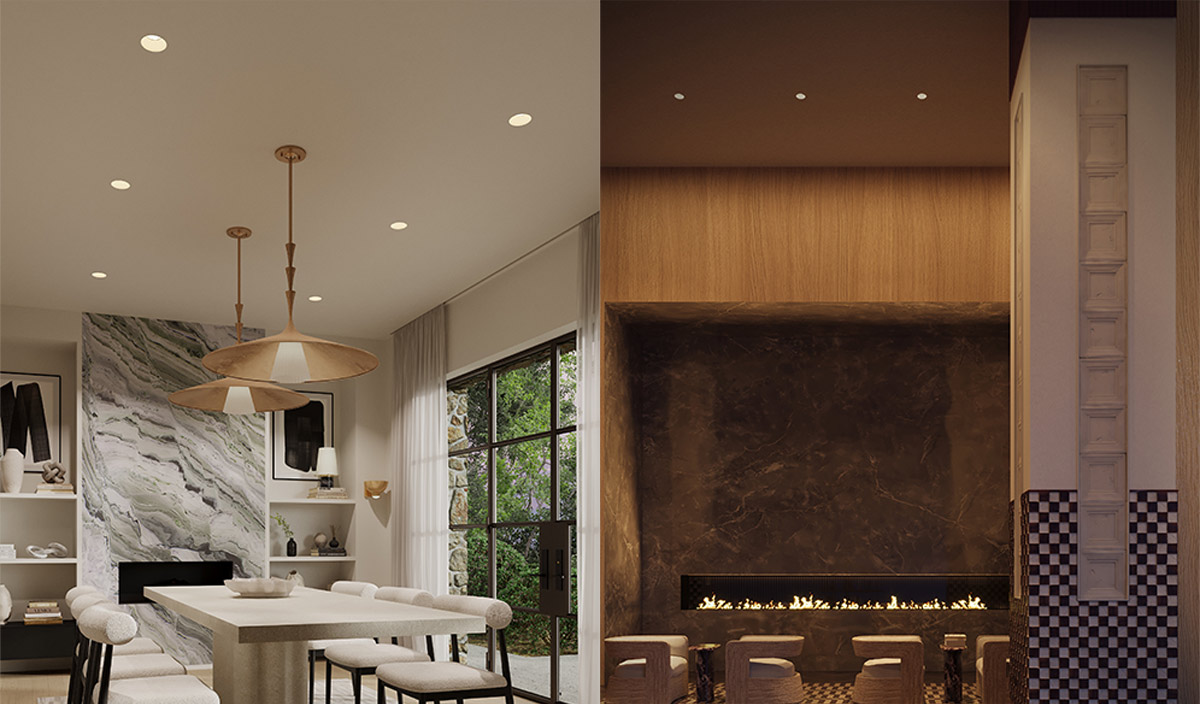

Applications

Downloads Browse

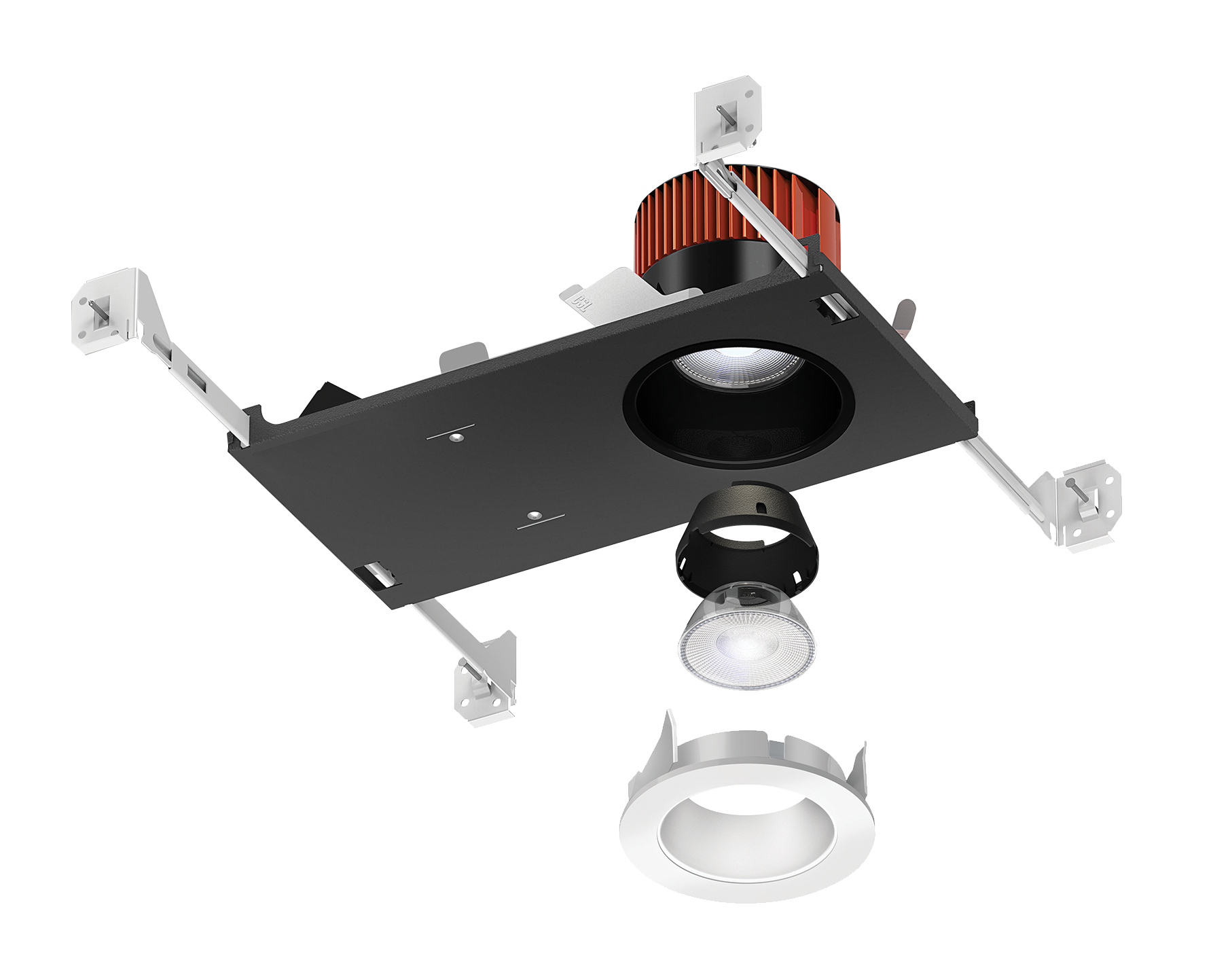

Features

ECO 1", 3", 5" LED Recessed Downlights are the new over achiever, designed to over deliver on light quality, efficiency, and configurability. ECO’s newly engineered housing system delivers the best design for fixed or easily adjustable lighting in new construction, and remodel projects. From residential and commercial to hospitality and retail, the ECO Downlight fits into plenums as low as 2 1/2" with improved housings and hanger bars that speed installation. CSL's patented optic system provides quality light with minimal glare and maximum control, bringing illumination into the space. Drivers on all models are accessible from below the ceiling to make serviceability quick and easy.

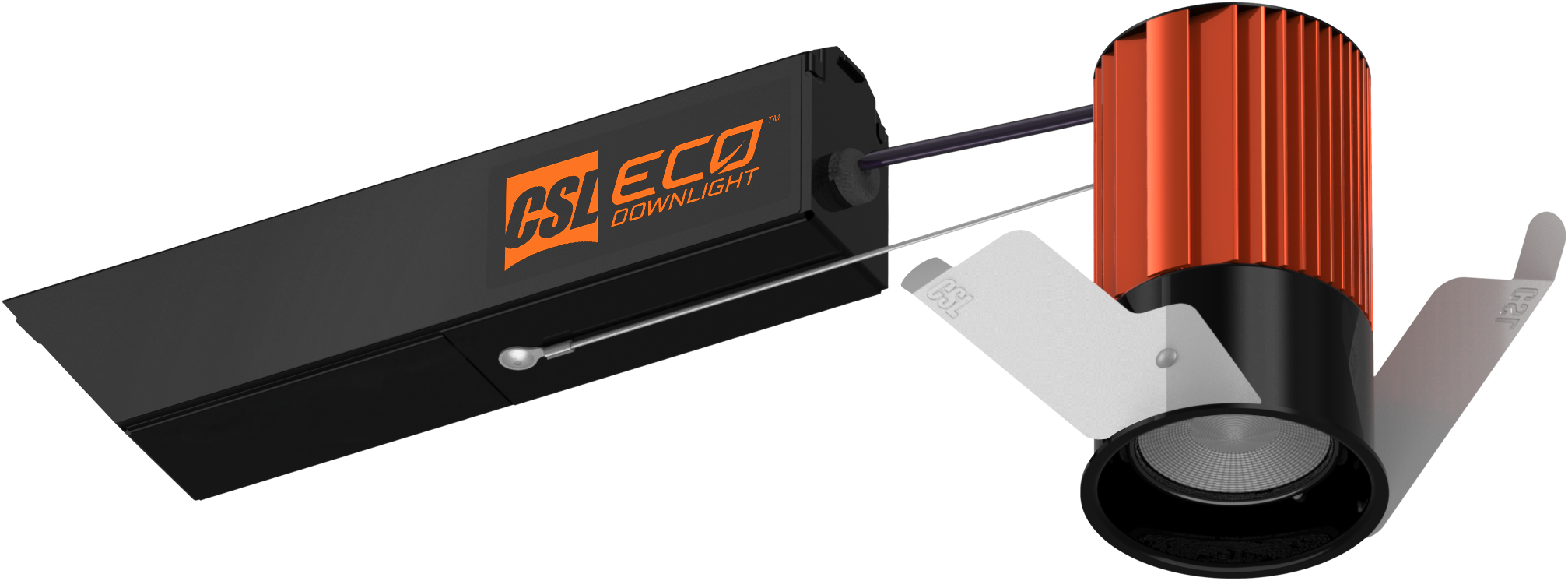

LED Light Engine

High quality LEDs chosen with 2 SDCM binning. LED lifetime 50,000 hours.

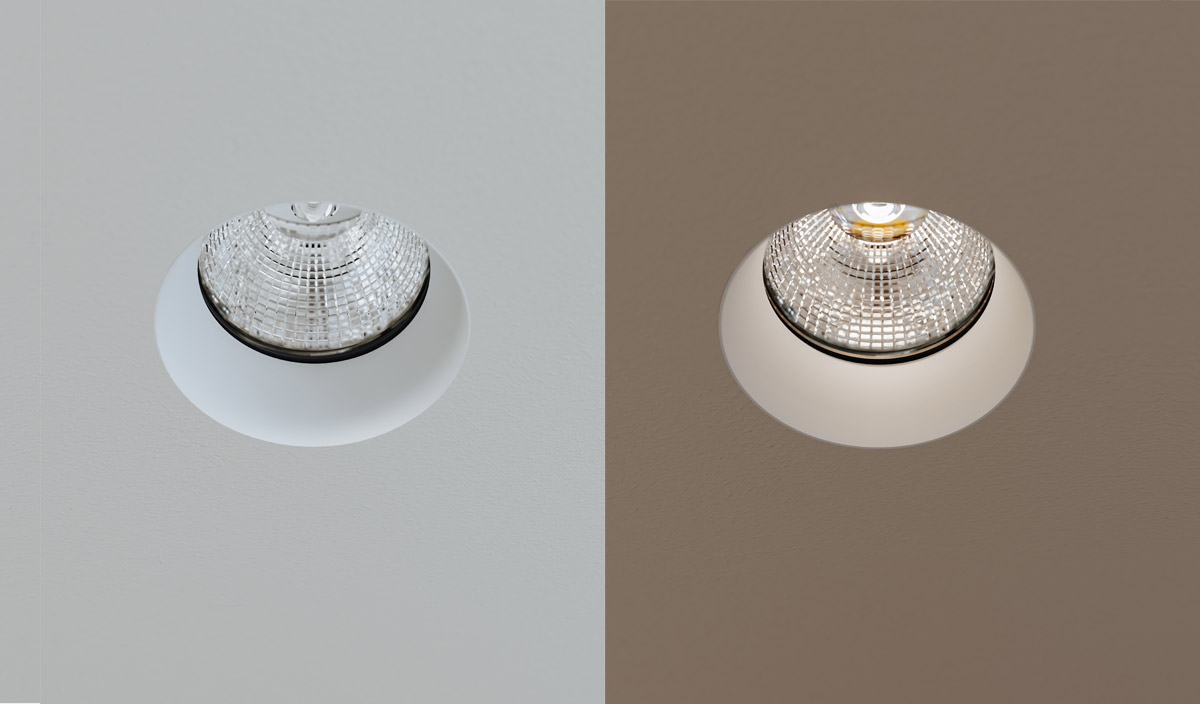

Quality Optics

10° 30° 50° 80° uniform beam spreads available. Optional media provide added control or diffusion.

High Performance Drivers

TRIAC/ELV, 0-10V, EcoSystem, dims to 1% standard, 0.5% and Warm Dim available

ECO^™ RECESSED DOWNLIGHTS

Sophisticated architectural finish

Options

LED light engine performance

	1"	3"	5"
BEST FOR	Clean, Modern, Minimalist	Accents with Higher Lumens	General Uniform Lighting
ADJUSTABILITY	15° Tilt 360° Rotation	45° Tilt 360° Rotation	45° Tilt 360° Rotation
10° 30° 50° 80° OPTICS	X	X	X
MEDIA	Clear, Solite, Frosted, Wall Wash, Linear Spread
WATTAGE	10W or 12W	13W or 21W	17W or 30W
MAX DELIVERED LUMENS	1100	1900	2600
EFFICACY	up to 103	up to 108	up to 104
CCT @ 90 CRI	2700K, 3000K, 3500K, 4000K, Warm Dim
LED LIFETIME	L90˃55,000 Hours
DIMMING TYPES	TRIAC/ELV, 0-10V, EcoSystem
SERVICEABILITY	Below Ceiling	Below Ceiling	Below Ceiling
MIN PLENUM HEIGHT	2 1/2"	2 1/2"	2 1/2"

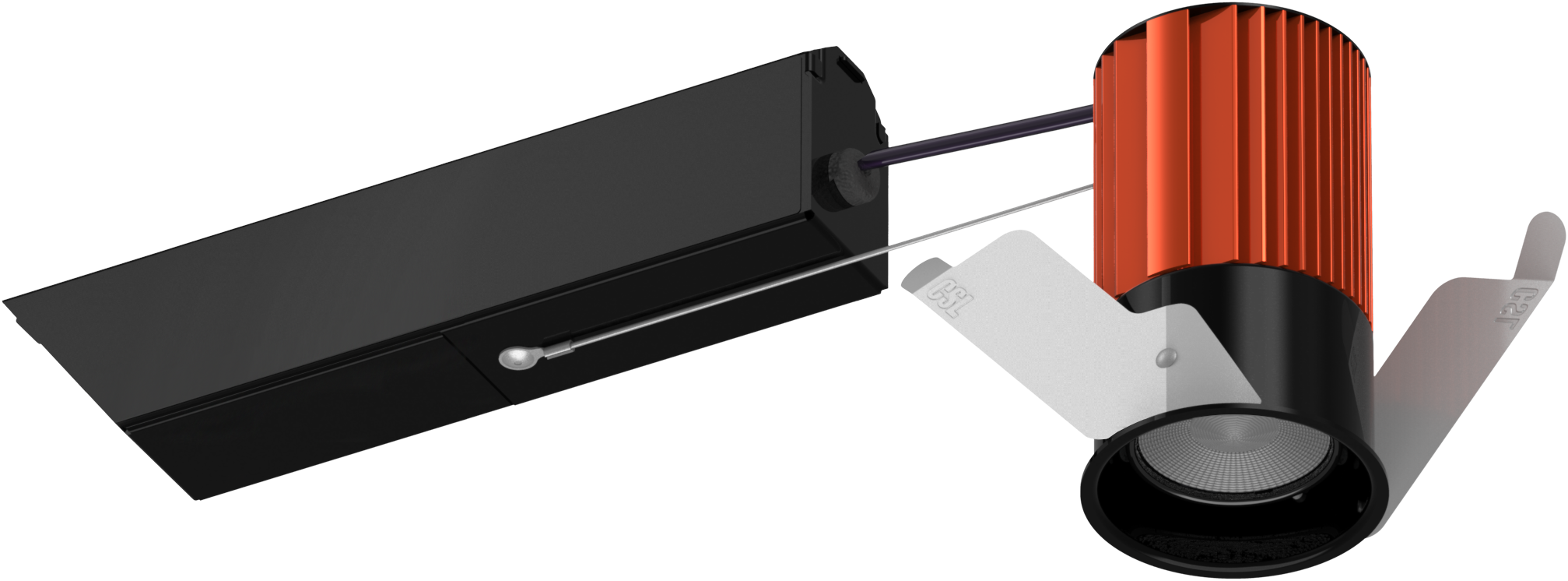

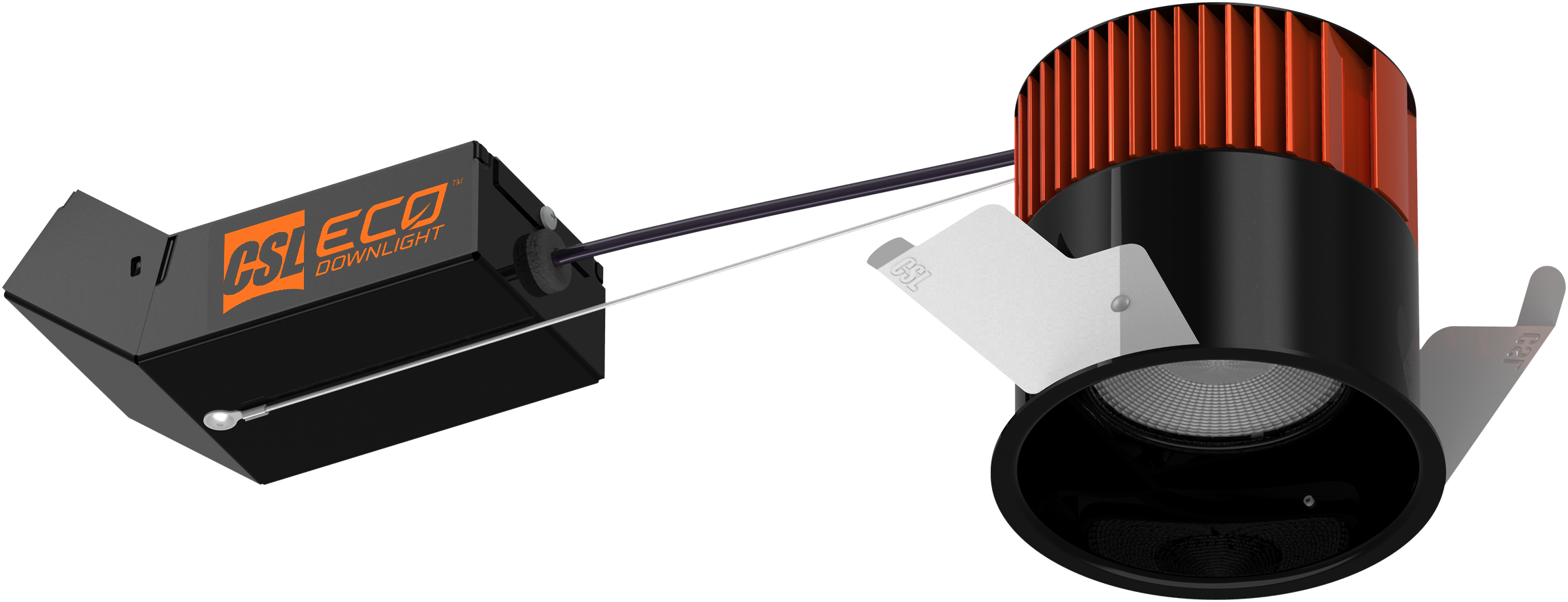

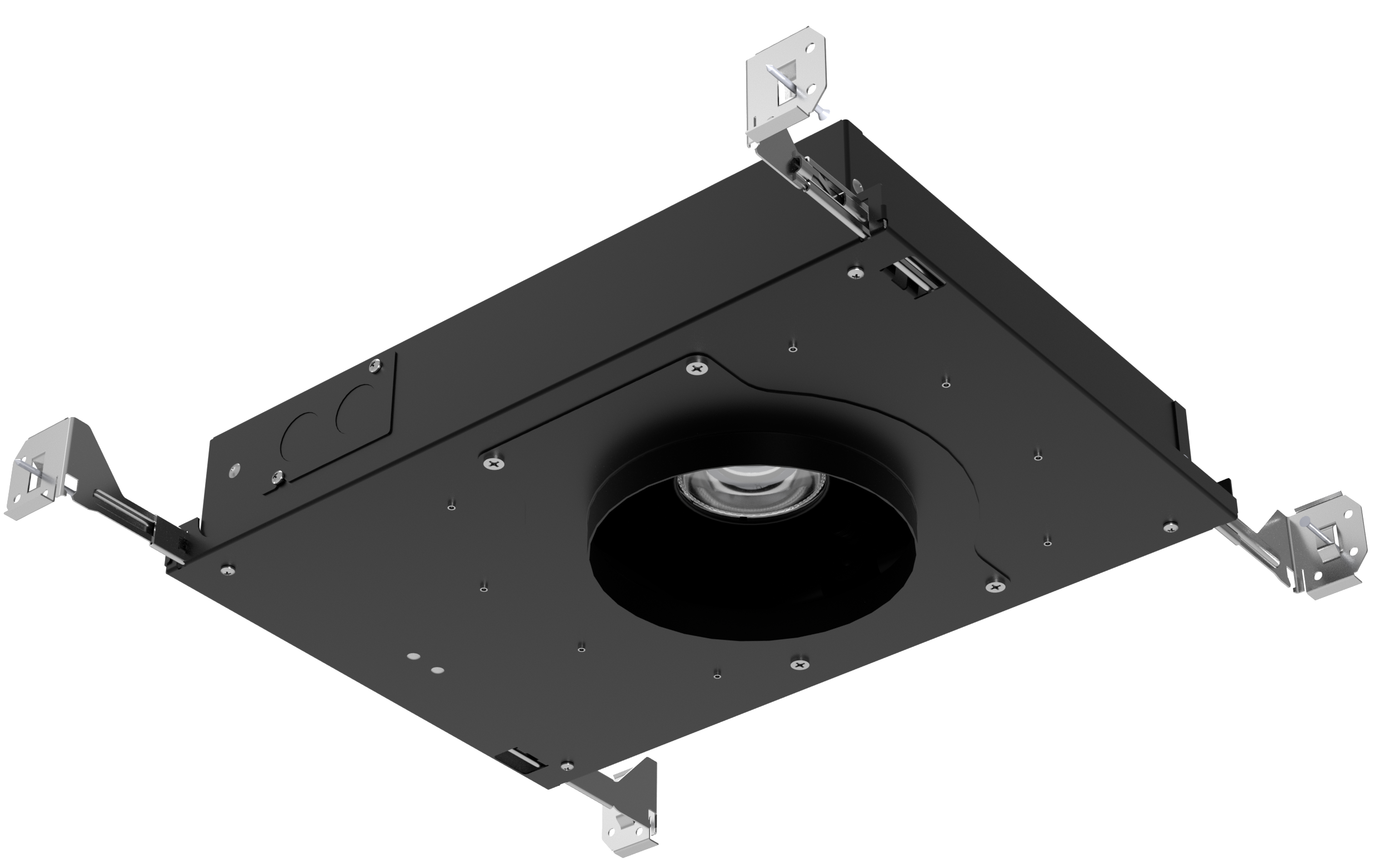

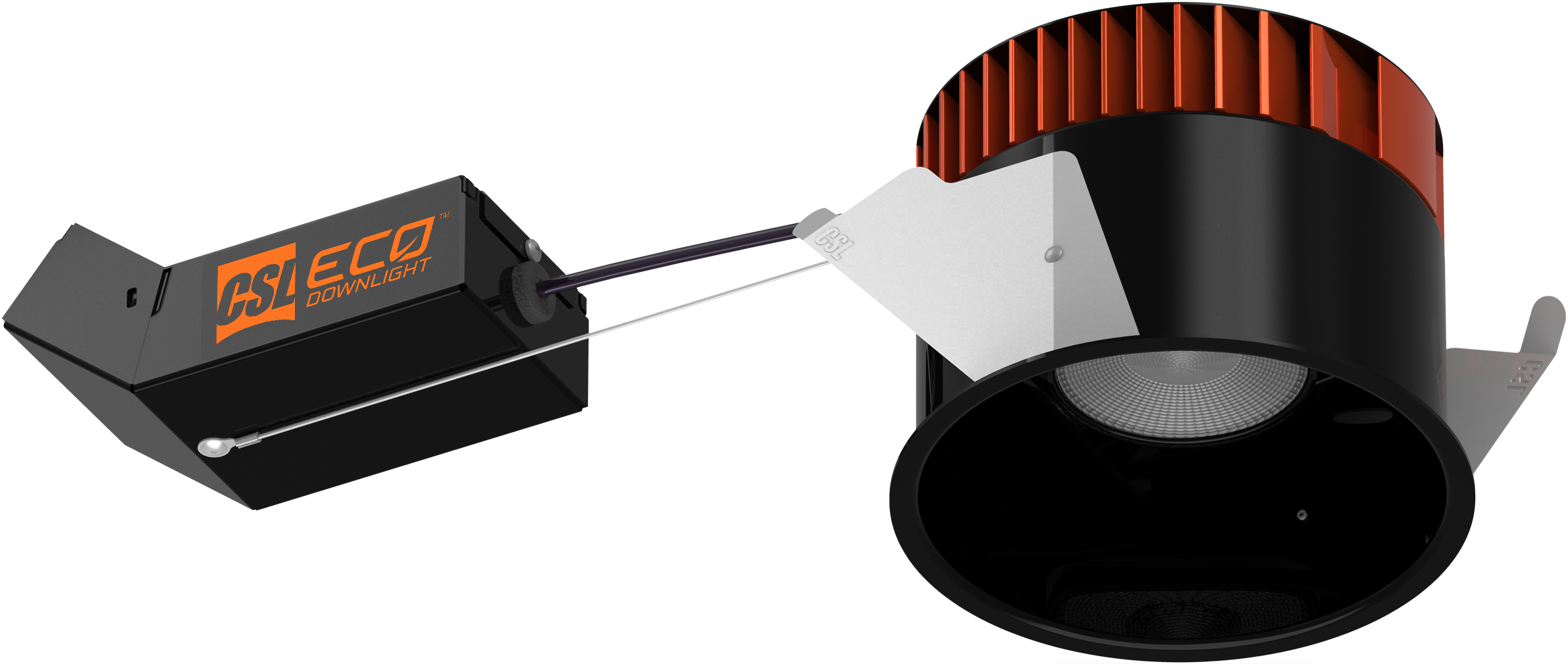

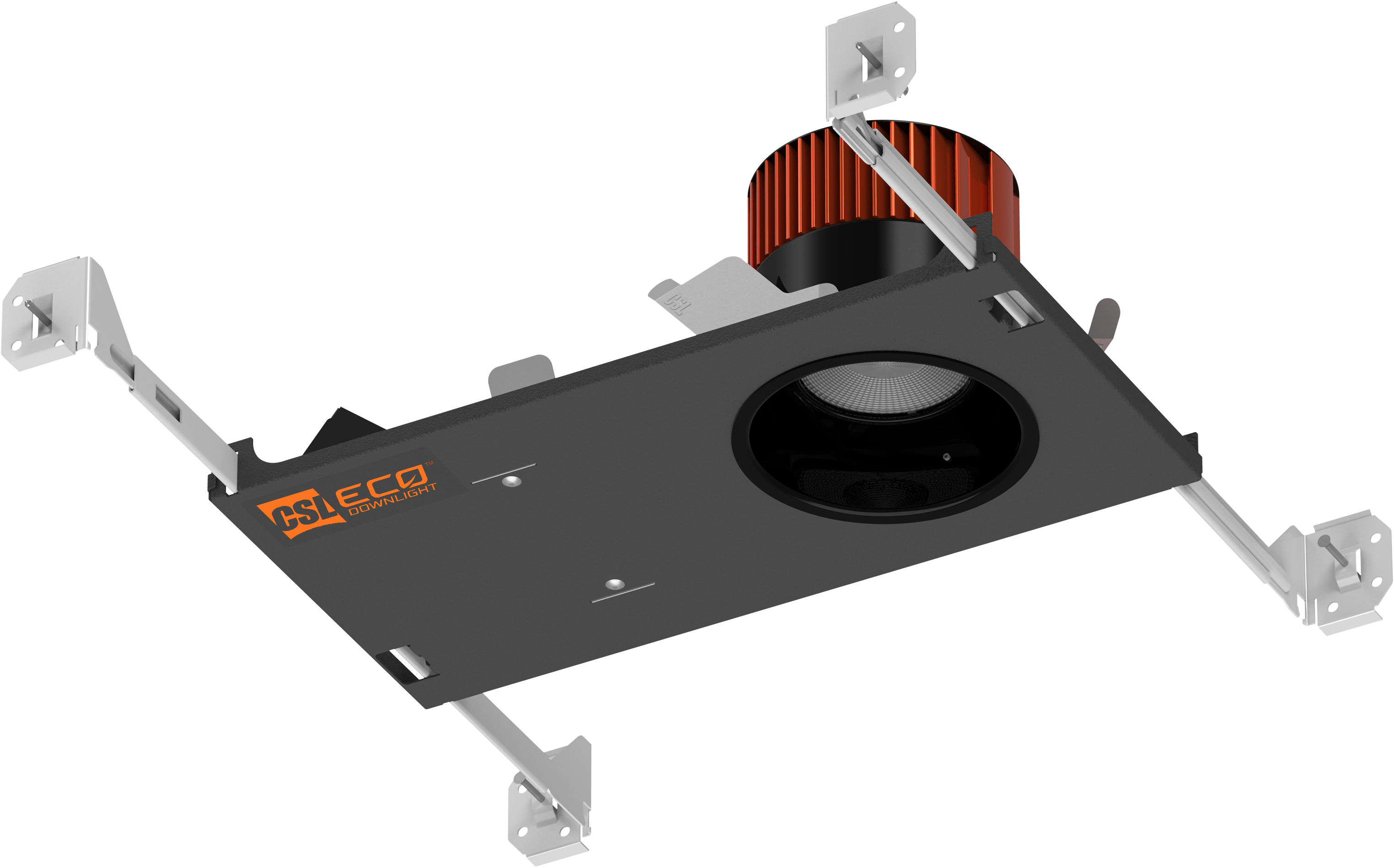

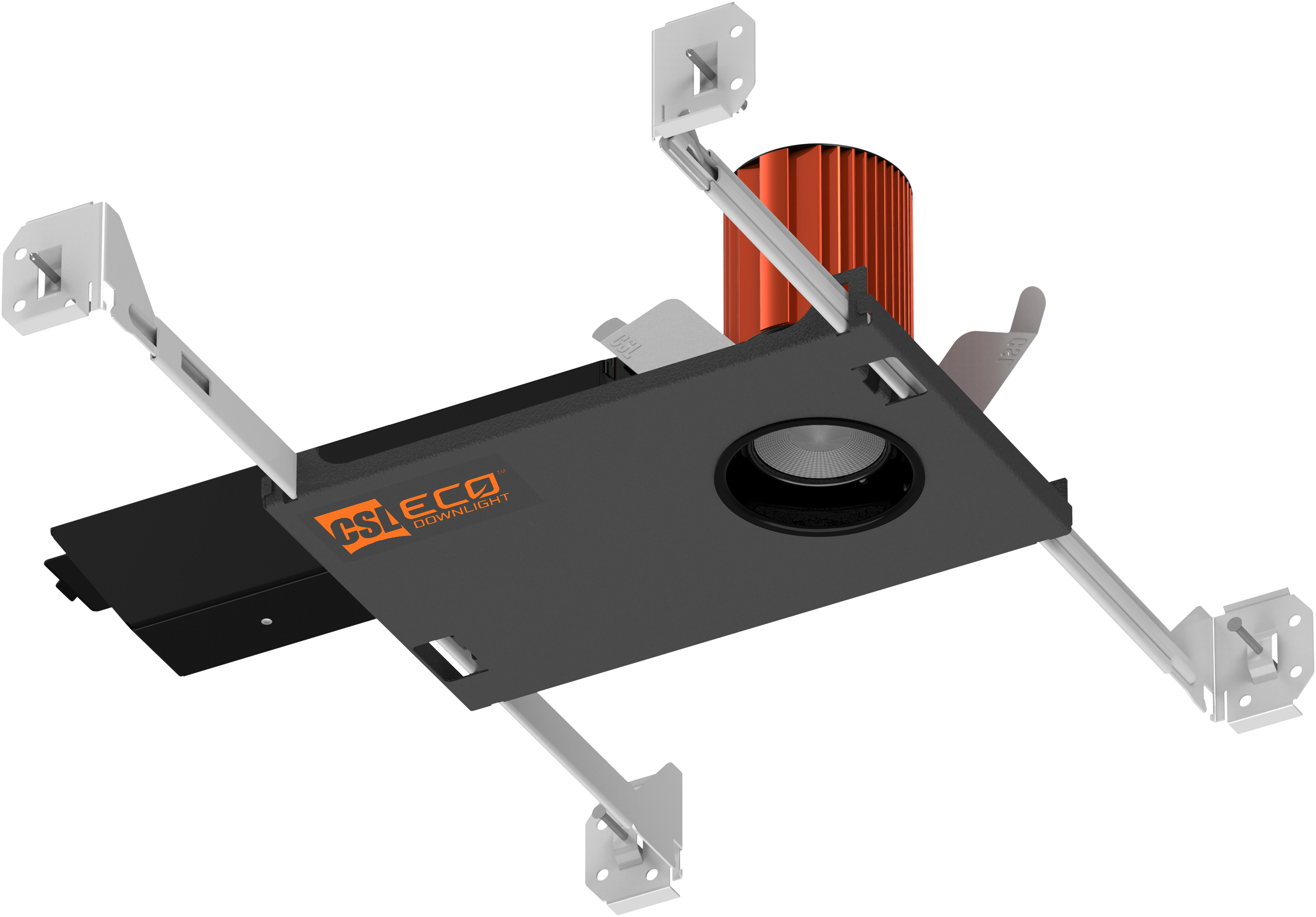

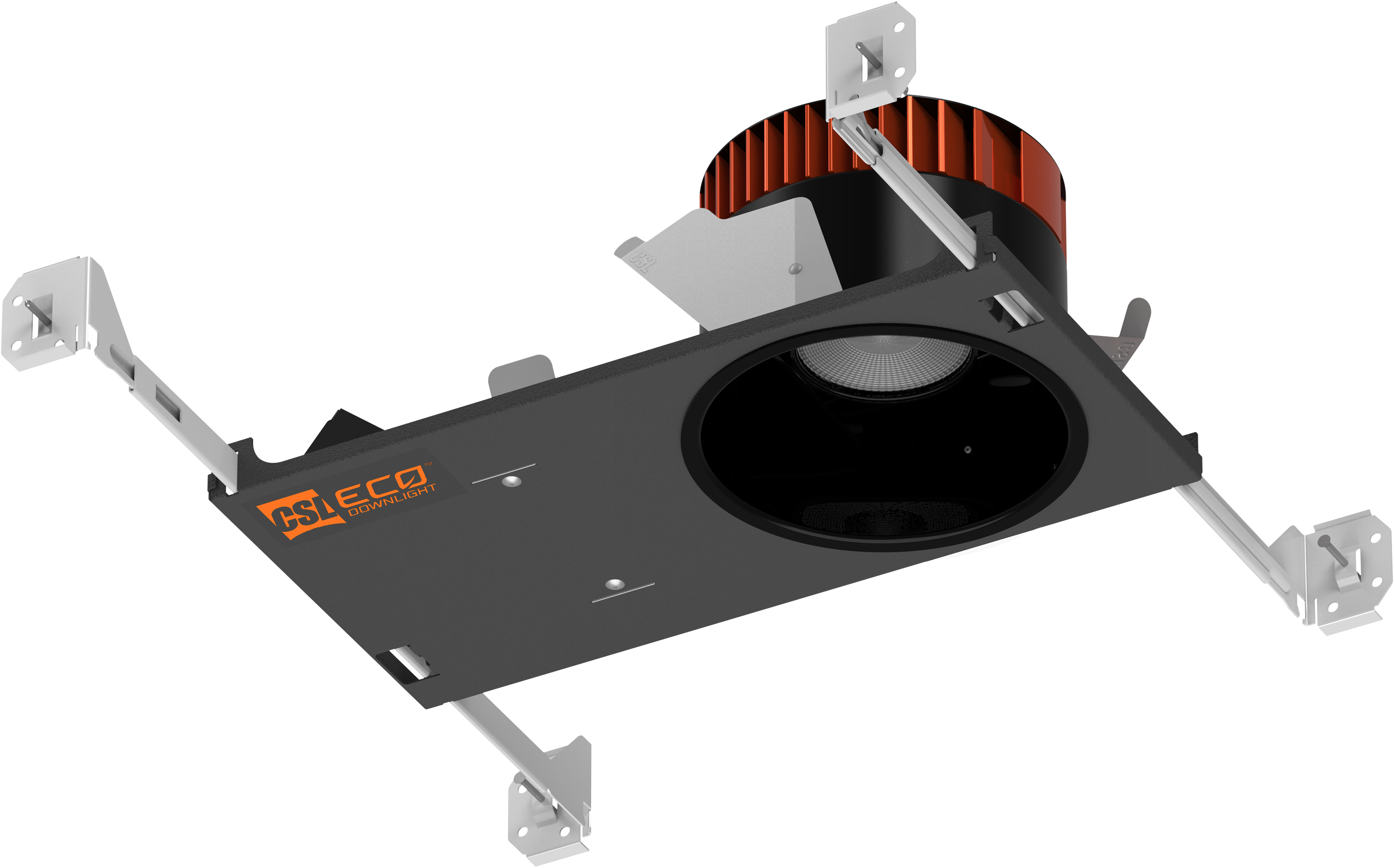

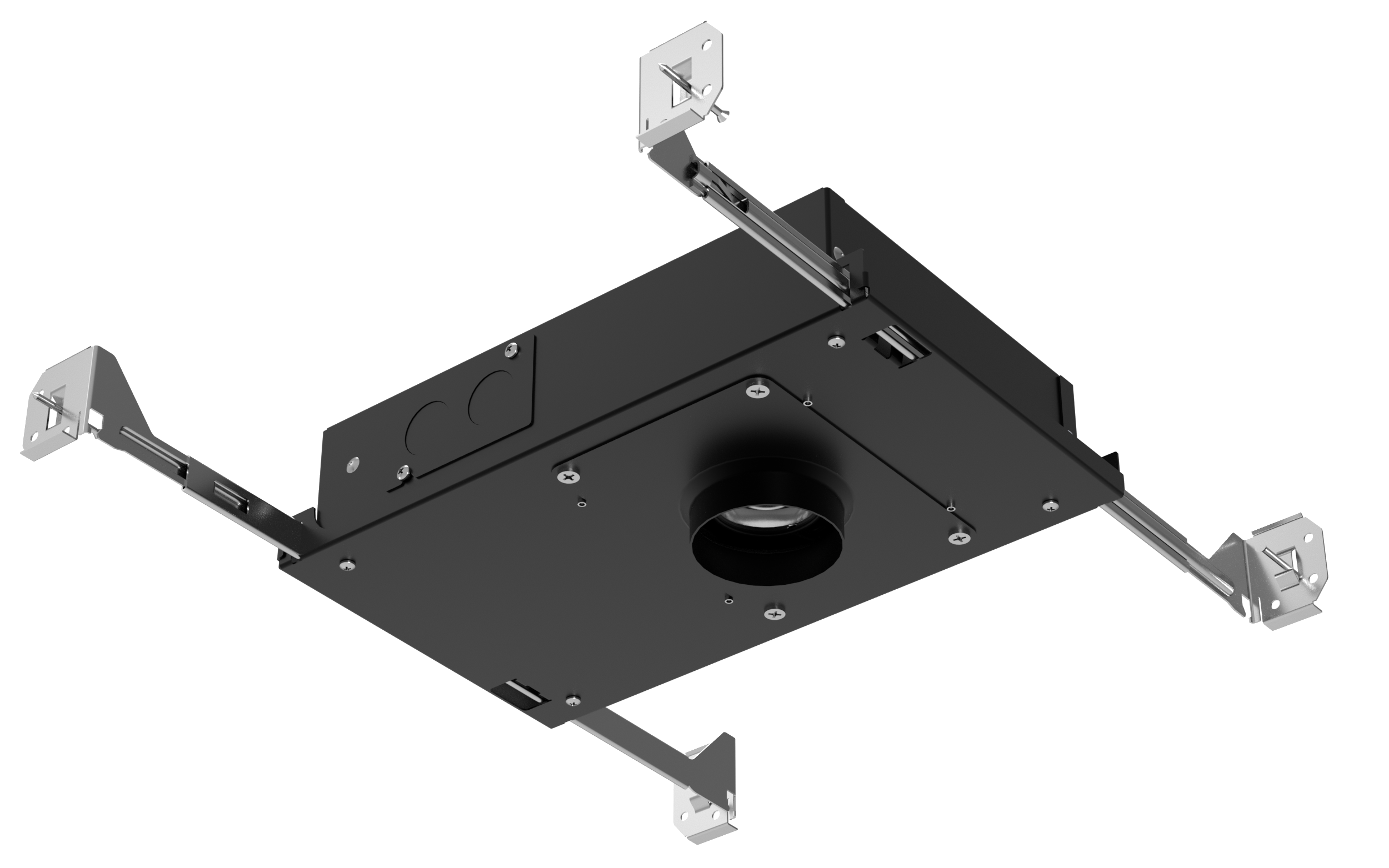

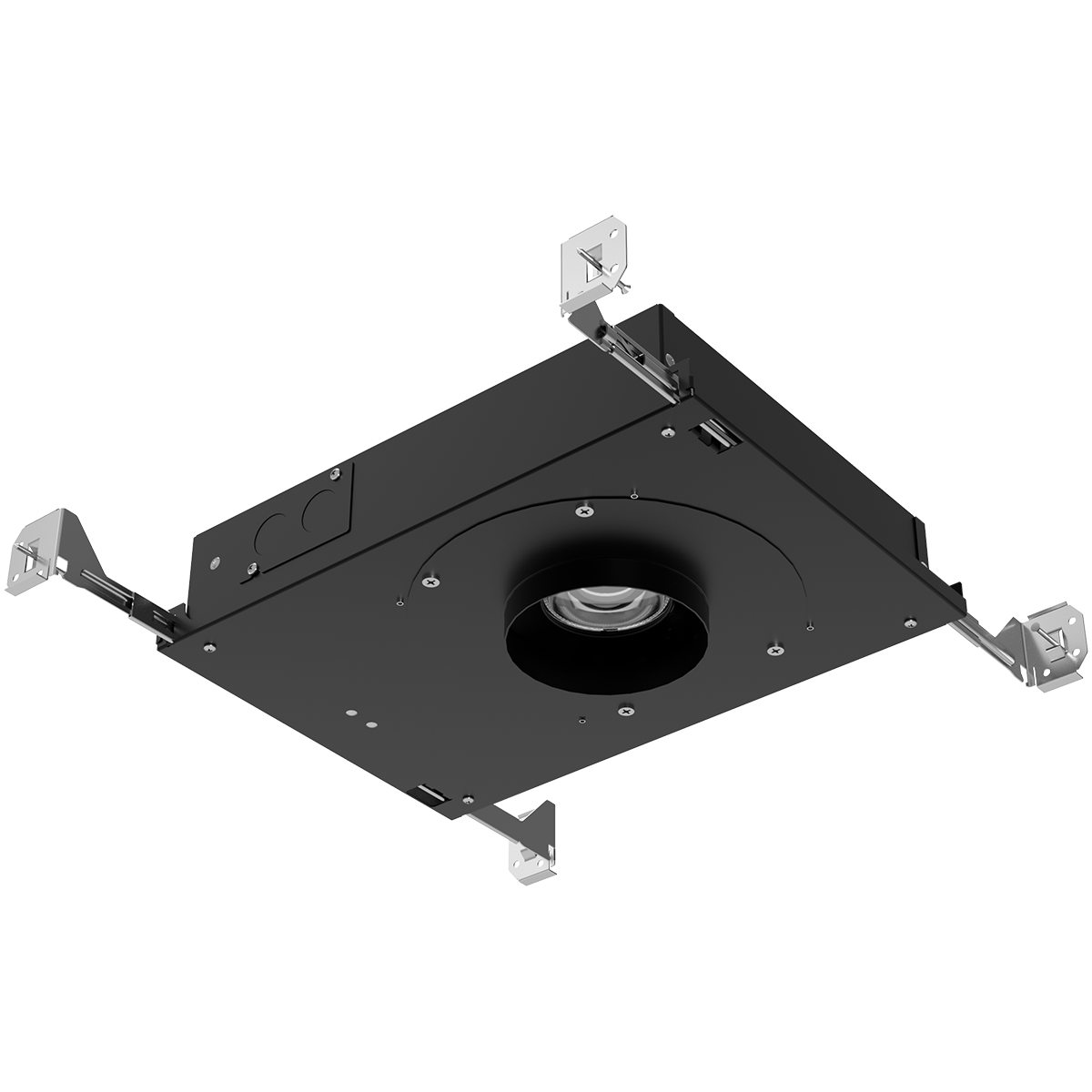

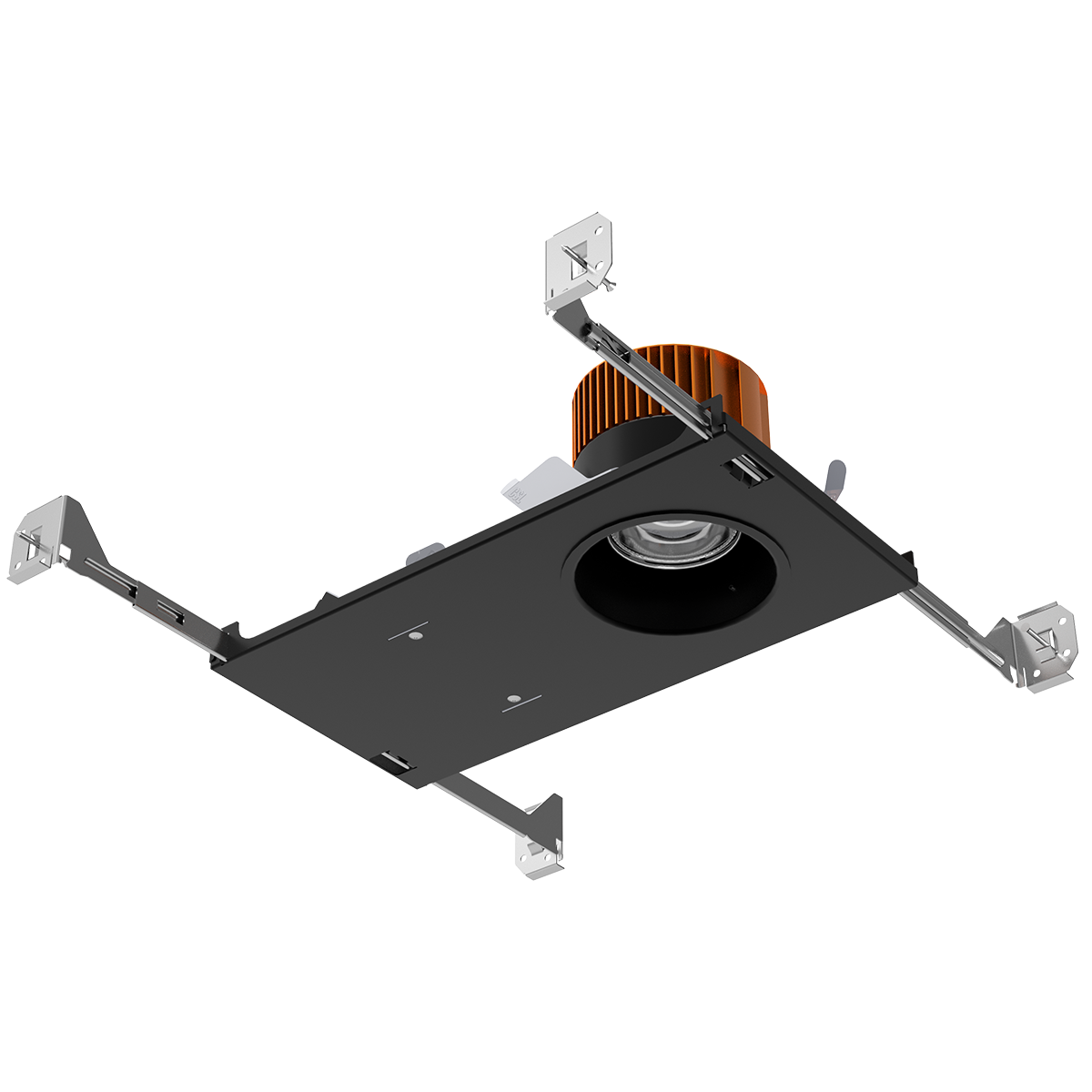

Housing

Trim

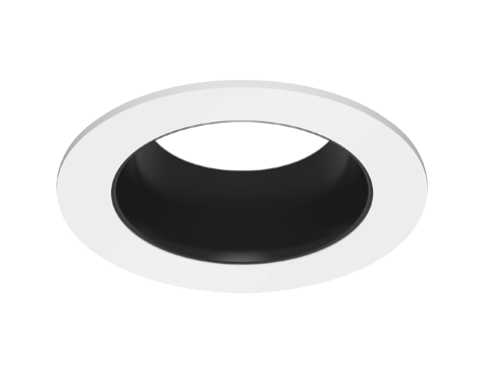

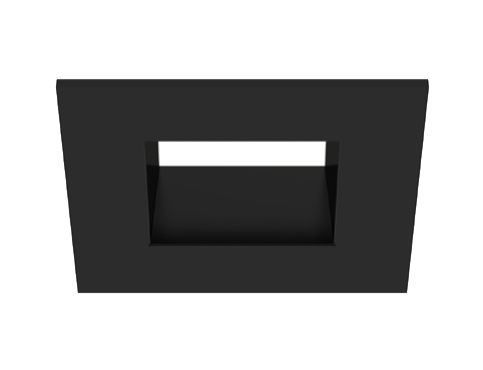

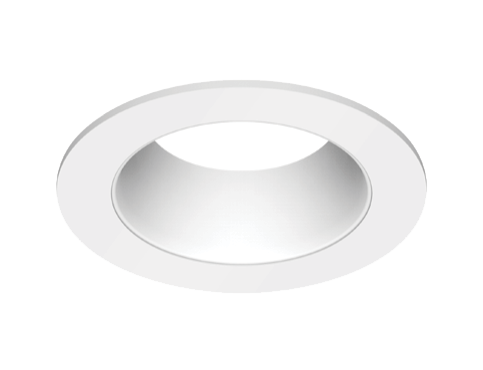

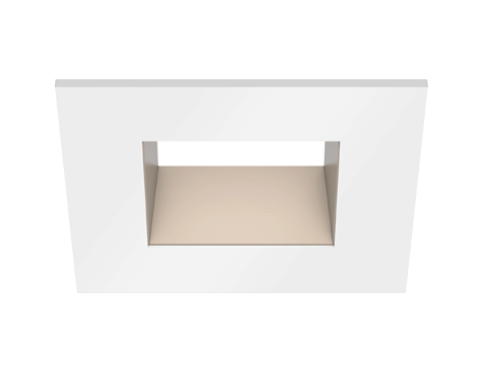

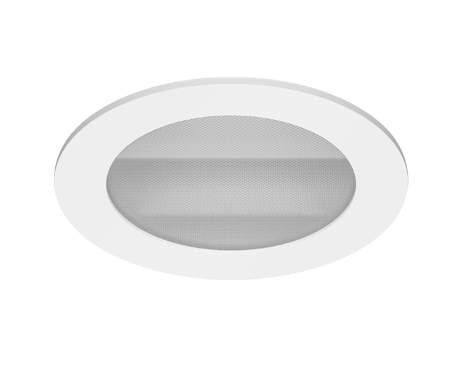

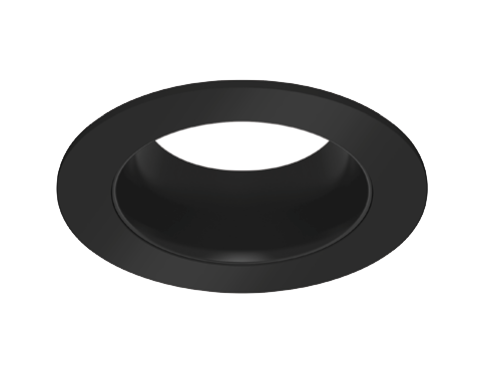

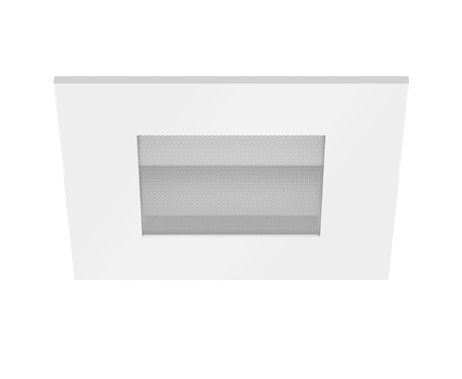

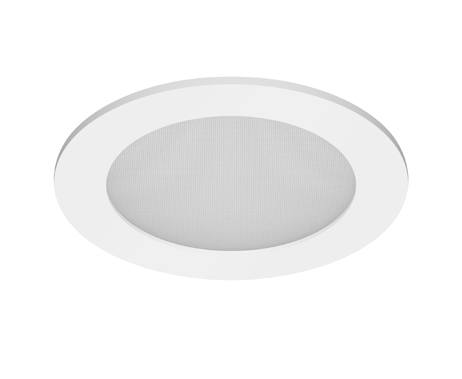

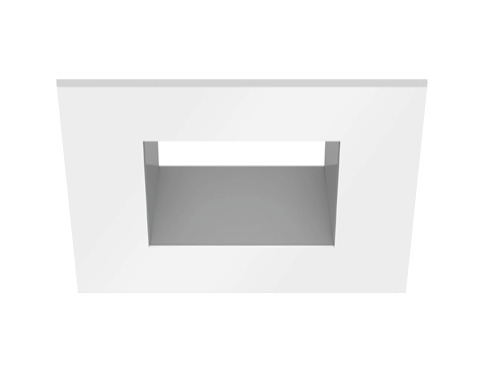

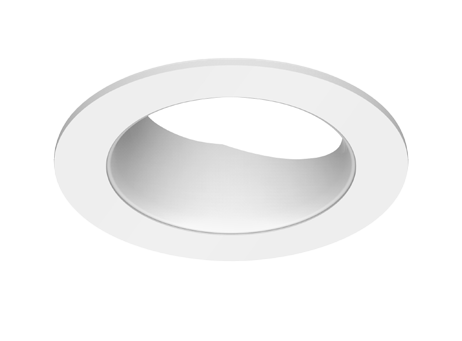

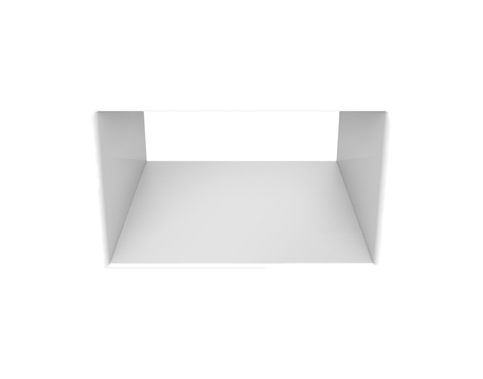

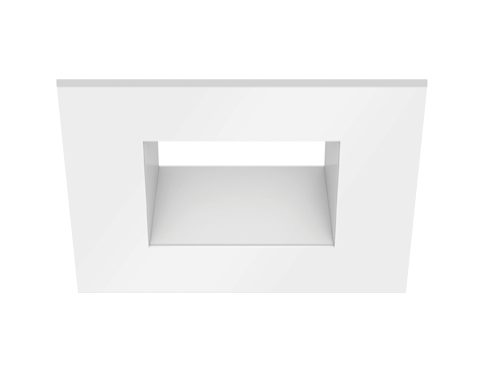

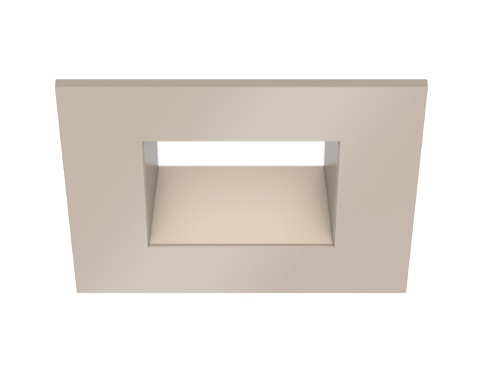

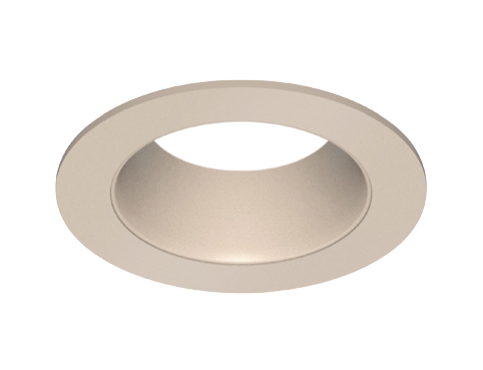

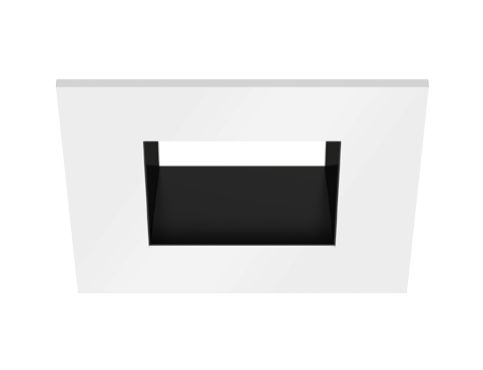

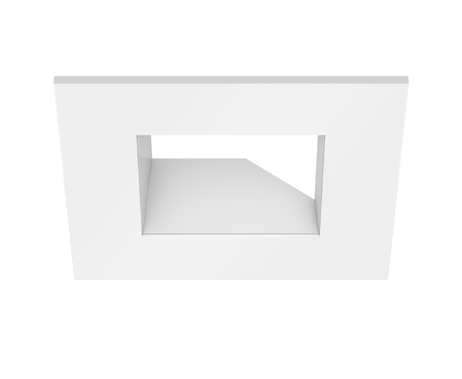

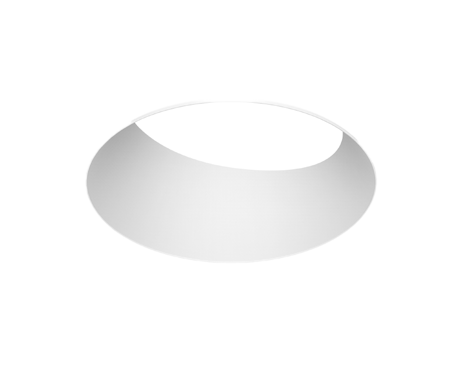

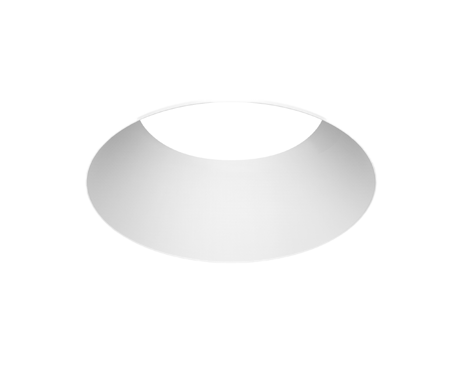

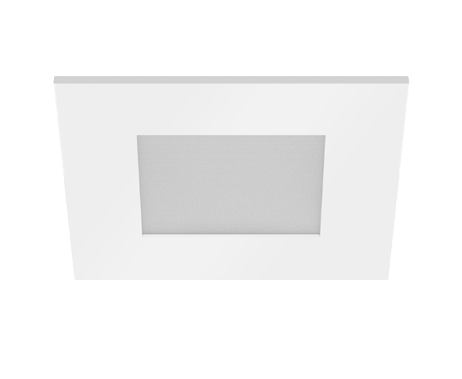

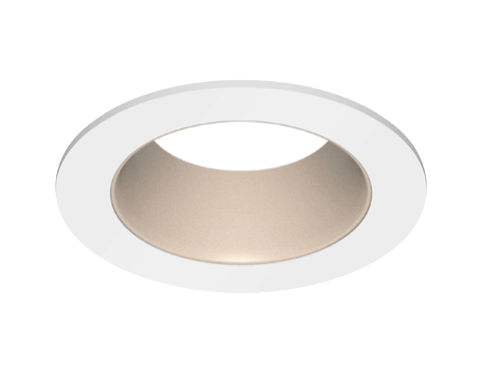

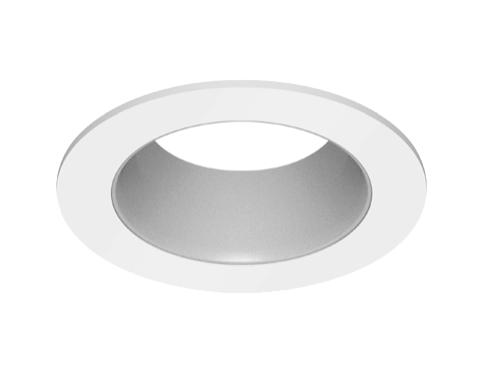

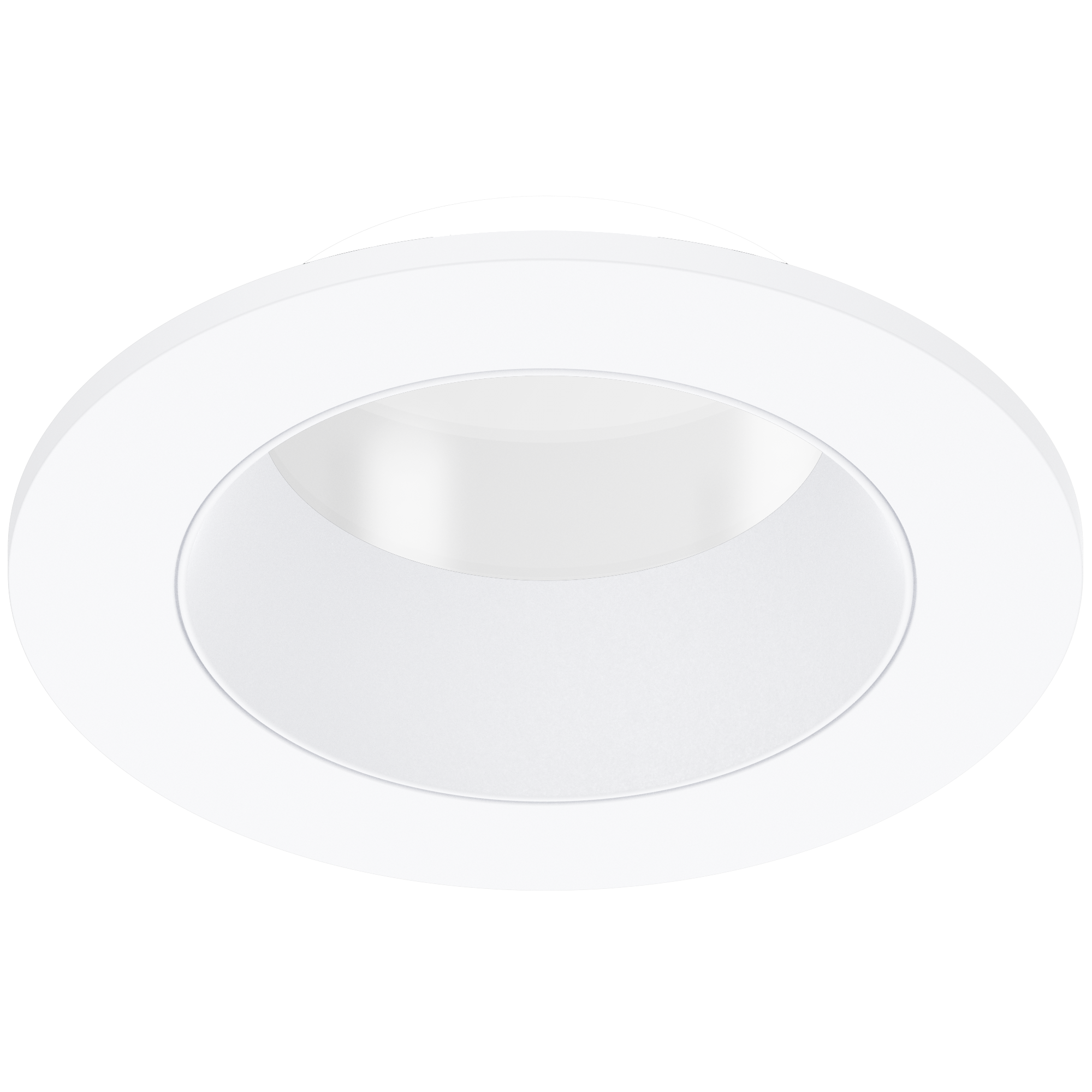

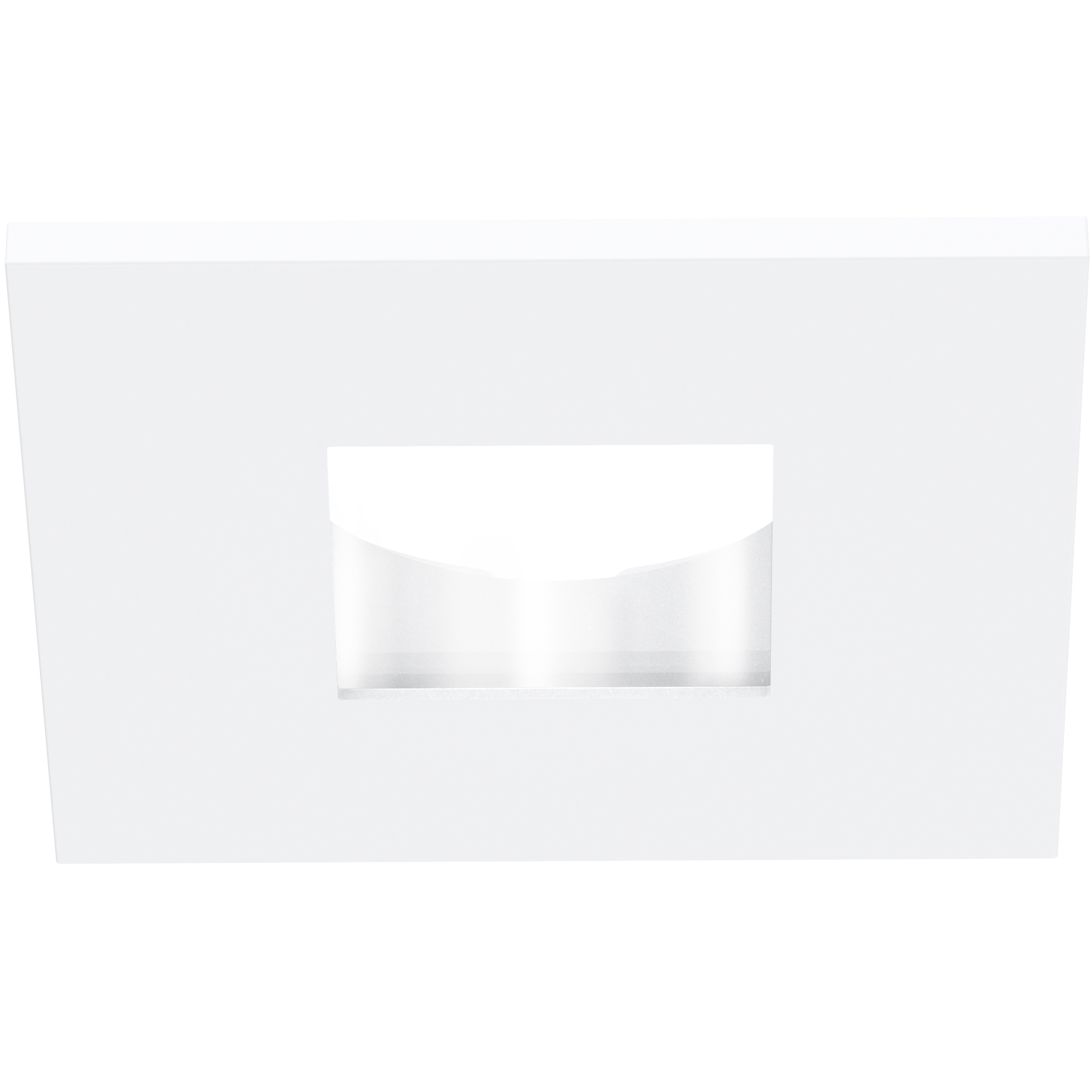

Eco^™ LED recessed downlights are offered in round and square aperture trims for creating a downlight, adjustable, baffle, pinhole, or wall wash. Trimless options are available.

Round Square
